Heavy Duty Solar Cat Eyes For Highways C2

Load Bearing: More Than 40 Tons (can be installed in the middle of the road)
Warranty: 18 Months
Body material: Aluminium(GB-ADC-12)+PC(Japan Brand)
Power supply: USA Brand Flexible High Efficient Solar Panel
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68

Description

Heavy Duty Solar Cat Eyes Features:

  • High brightness America brand led light with 100000 hours of working time.
  • USA brand solar panel. 22% high conversion rate. Fast charge rate.
  • Japan brand casting Al material. Solar Cat Eyes bear more pressure.
  • Most quality Epoxy resin glue to fix the Solar Cat Eyes, making sure of solar power charge.
  • Philips PC board, safe and stable. Long-time warranty for solar studs reflectors.
  • The leader of Solar Cat Eyes. Load capacity:>40T(can be installed in the middle of the road)



Heavy Duty Solar Cat Eyes For Highways-color
Heavy Duty Solar Cat Eyes For Highways-color



Aluminum Solar Cat Eyes Parameters:

Material:     Aluminium(GB-ADC-12)+PC(Japan Brand)
    Power supply:     USA Brand High Efficient Solar Panel
5V/60MA for lithium battery
3V/120MA for super capacitor
    Battery:     Lithium battery 3.2V/500MA(made in Japan);
Supercapacitor 2.3V/120F(made in Korea)
    Working model:     Blinking or Constant
Charging in the daytime and working automatically at night
    Life span:      5years for lithium battery;
10years for supercapacitor.
    Resistance:     > 40T(can be installed in the middle of road)
    Size:      φ125*50mm  (φ4.92″*1.97″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     1pcs/box; 30pcs/ctn; weight: 30kgs; carton size: 67.5*28*20cm
1pcs/box; 30pcs/ctn; weight: 66.14bs; carton size: 26.57″*11.02″*7.87″



Heavy Duty Solar Cat Eyes For Highways

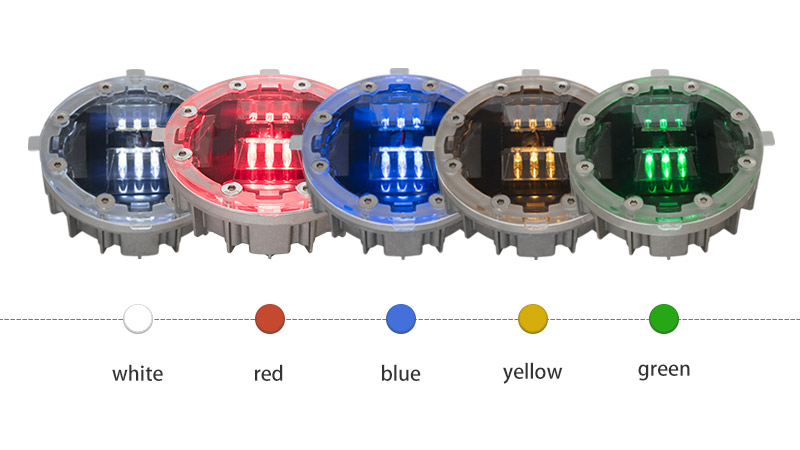

Five colors for choice: White, Amber, Red, Blue, Green



Application of Heavy Duty Solar Cat Eyes C2:

♥Schools and hospitals

♥Highways

♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Road Center



How to install Aluminum Solar Cat Eyes C2:



1.Carefully mark the distance between the placement of Solar Cat Eyes. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 127mm and depth will be 45mm.

2.Remove all debris from the installation hole.

3.Pour epoxy into the holes per the manufacturer’s instruction.

4.Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the Solar Cat Eyes shaft.

5.Set the lighting surface of the Solar Cat Eyes to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Solar Cat Eyes shaft.

After curing the LED Solar Cat Eyes for 6-8 hours, remove the installation of the isolation facility.
