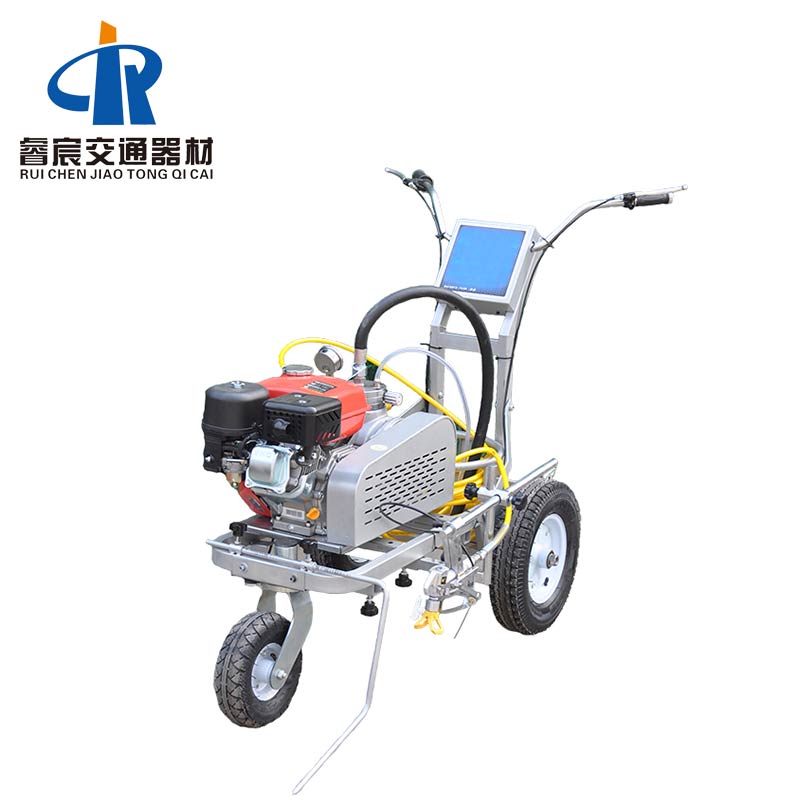

Diaphragm Pump Road Line Marking Machine RC-CRM-2.1

Engine: 6.5HP LONCIN gasoline engine
Support nozzle: 1708, 417, 517
Max. Marking speed: 130m/min
Thickness of spray: 0.2-0.4mm
Marking Width: 8-25cm
Flow of spray: 3.8L/min

Description
Diaphragm Pump Road Line Marking Machine Features

•One or two hands spray guns to choose from.

•Diaphragm pump: Stainless diaphragm pump, longer service life.

•5.5HP imported gasoline engine, have a stable and strong performance.

•Special equipment for normal temperature marking construction, easy to operate.

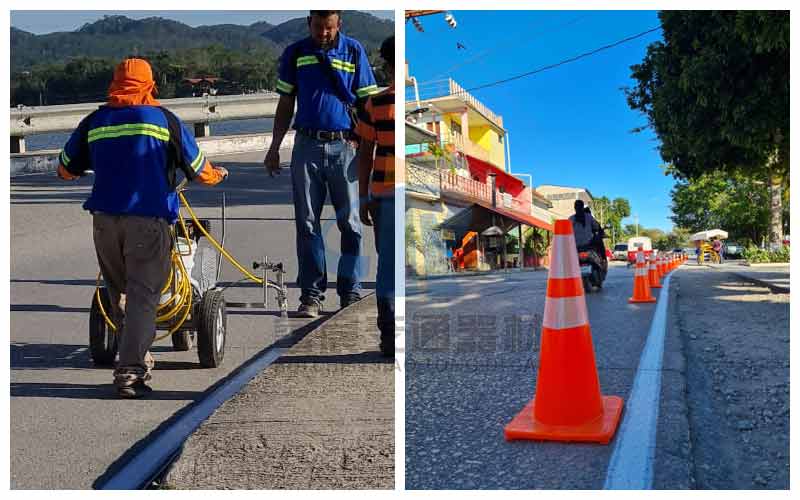

•Road marking spray paint machine is mainly suitable for painting straight lines, dashed lines, curves, zebra crossings, swords, arrows, graphic signs, etc. in factories and on highways, parking lots, airports, and gas stations.

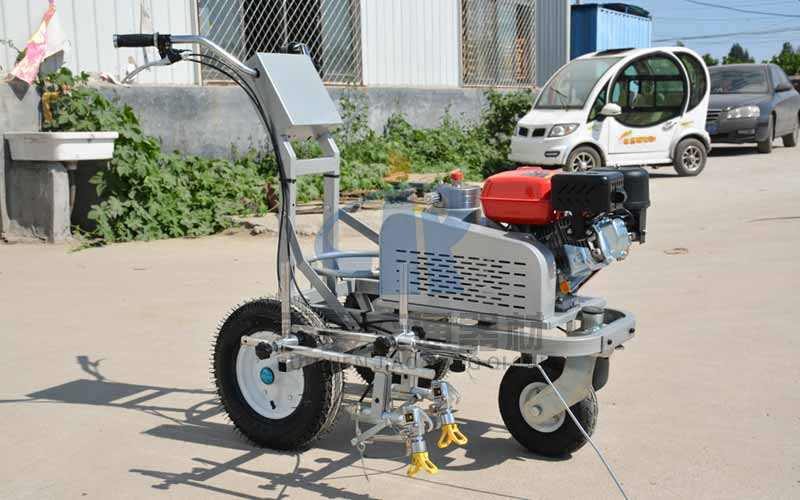

Diaphragm Pump Road Line Marking Machine-4
Diaphragm Pump Road Line Marking Machine



Diaphragm Pump Road Line Marking Machine Parameters:
Engine: 6.5HP LONCIN gasoline engine
Max. Marking speed: 130m/min
Support nozzle: 1708, 417, 517
Thickness of spray: 0.2-0.4mm
Marking Width: 8-25cm
Work pressure: 8-16MPa
Flow of spray: 3.8L/min
Size: 1120*790*950mm
Net Weight: 70kg
Package: Wooden size: 1140*820*870mm,110kg

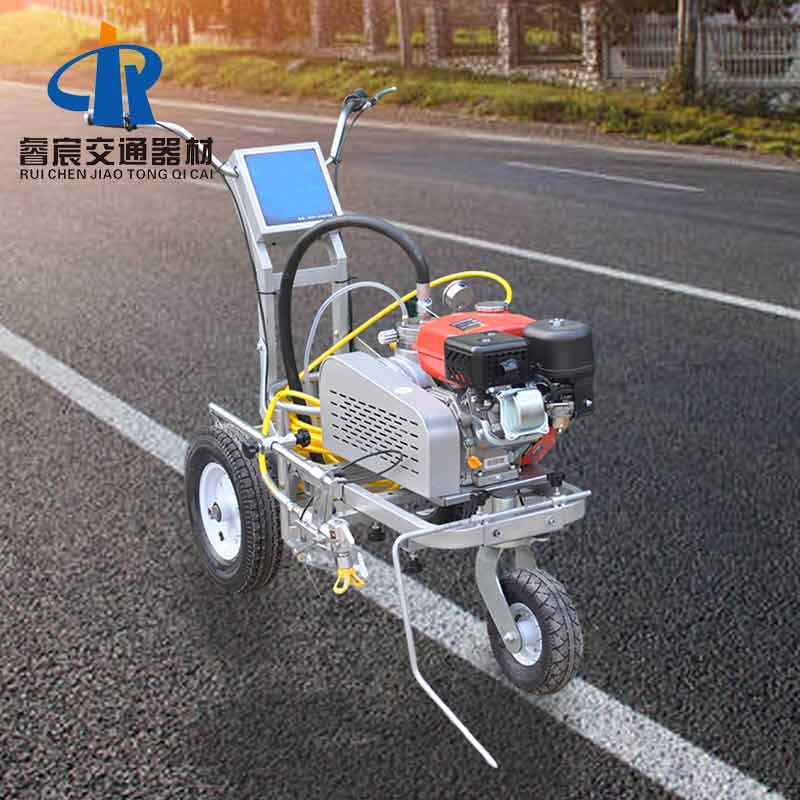

Diaphragm Pump Road Line Marking Machine

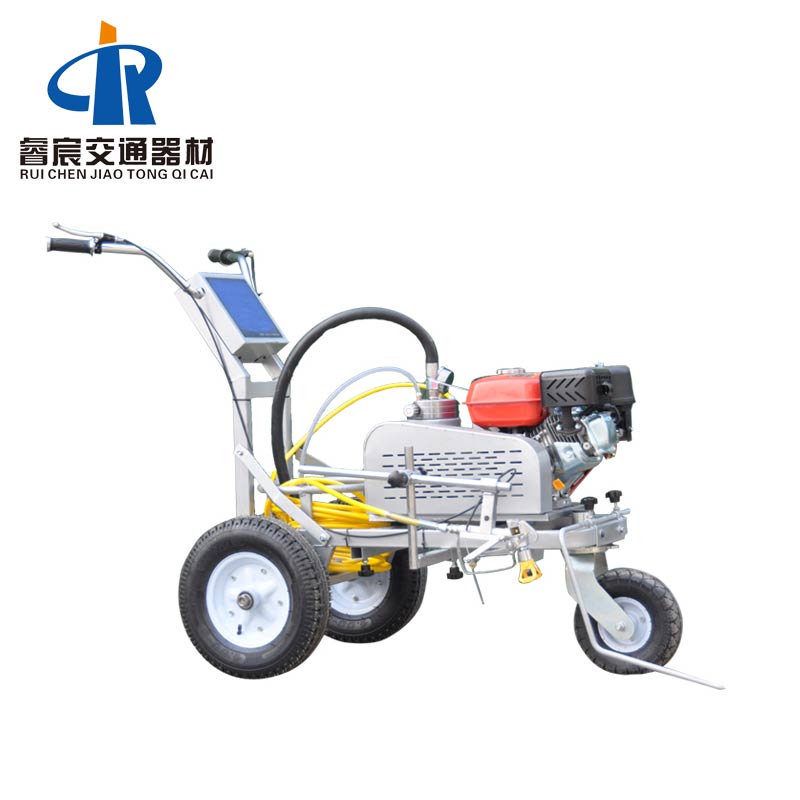

Diaphragm Pump Road Line Marking Machine
