Aluminum Solar Cat Eyes Pavement Marker C3

Load Bearing: >30T(static)
Warranty: 12 Months
Body material: Heavy-duty casting aluminum
Battery: Lithium battery 1000mA
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68


Aluminum Solar Cat Eyes Features:

•Up to 800 meters of visibility.

•Reliable all night, all-year-round performance.

•Totally sustainable harnessing free solar energy.

•Used where street lighting is either unavailable, Solar Cat Eyes not cost-effective, or environmentally impossible.

•Cost-effective, LED Solar Cat Eyes are easy to install and require absolutely no wires or maintenance.

•Solar-powered Solar Cat Eyes self-contained surface mounted.

•Solar Cat Eyes for road accept OEM/ODM


Aluminum Solar Cat Eyes Pavement Marker color
Five colors for choice: White, Amber, Red, Blue, Green


Aluminum Solar Cat Eyes Pavement Marker Parameters:


    Material:     Aluminium+ PC
    Power supply:     Solar panel(monocrystalline 2.5V/0.3W)
    Battery:     Lithium battery 1000mA
    Working model:     Blinking or Constant
Charging at daytime and working automatically at night
    Life span:     5 years for lithium battery;
    LED colors:     Yellow, White, Red, Green, Blue
    Resistance:     >30T(static)
    Size:     φ123*45mm  (φ4.84″*1.77″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm
(1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)

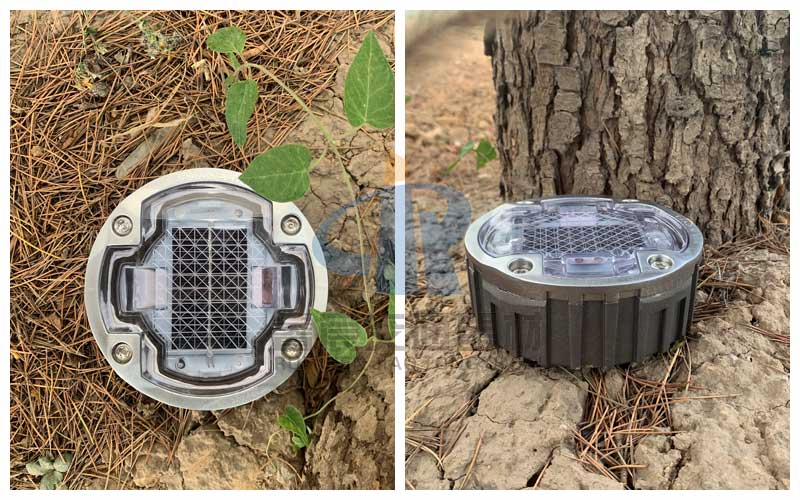

Aluminum Solar Cat Eyes Pavement Marker
Aluminum Solar Cat Eyes Pavement Marker


Application of Aluminum LED Solar Cat Eyes C3:

♥Schools and hospitals


♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road


How to install Solar Cat Eyes Pavement Marker C3:


1.Carefully mark the distance between the placement of Solar Cat Eyes lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 125mm and depth will be 45mm.

2.Remove all debris from the installation hole.

3.Pour epoxy into the holes per the manufacturer’s instruction.

4.Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the Solar Cat Eyes shaft.

5.Set the lighting surface of the Solar Cat Eyes to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Solar Cat Eyes shaft.

After curing the LED Solar Cat Eyes for 6-8 hours, remove the installation of the isolation facility.
