360 Degree Plastic Solar Cat Eyes Embedded Type B2

Load Bearing: >20T(static)
Warranty: 12 Months
Body material: Anti-UV PC
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Type: Embedded type

Description

360-degree Solar Cat Eyes Features:

•High shock resistance, energy-saving, environment friendly.

•Automatically starts to work when night falls or with the onset of inclement weather.

•These aluminum alloy LED Solar Cat Eyes are naturally charged by the sun.

•The LED Solar Cat Eyes come on automatically as soon as it starts getting dark every night.

•Cost effective, Solar Cat Eyes easy to install and require absolutely no wires or maintenance.

•Dramatically enhances the look of your garden/yard/driveway.

•Specifically designed with road safety in mind and can help to prevent serious accidents and emit rather than reflect light.

•Pavement marker Solar Cat Eyes accept OEM/ODM

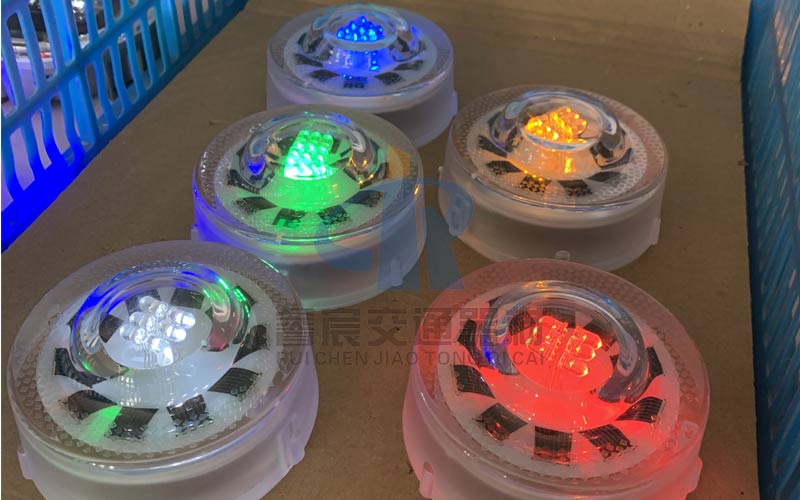

360 Degree Plastic Solar Cat Eyes color
Five colors for chioce: White, Amber, Red, Blue, Green



Embedded Type Plastic Solar Cat Eyes Parameters:



    Material:     Anti-UV PC
    Power supply:     Solar panel(monocrystalline 2.5V/0.2W)
    Battery:     NI-MH 1.2V/800MAH or Lithium battery
    Working model:     Blinking or Constant
Charging at daytime and working automatically at night
    LED:     Ultra bright LED, diameter 5mm(6pcs)
    LED colors:     Yellow, White, Red, Green, Blue
    Life span:     3 years
    Resistance:     >20T(static)
    Size:     φ112*56mm  (φ4.41*2.20″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     1pcs/box;30pcs/ctn; Weight:13.5kgs; Carton size:60*34.5*21.5cm
(1pcs/box;30pcs/ctn; Weight:29.76bs; Carton size:23.62″*13.58″*8.46″)

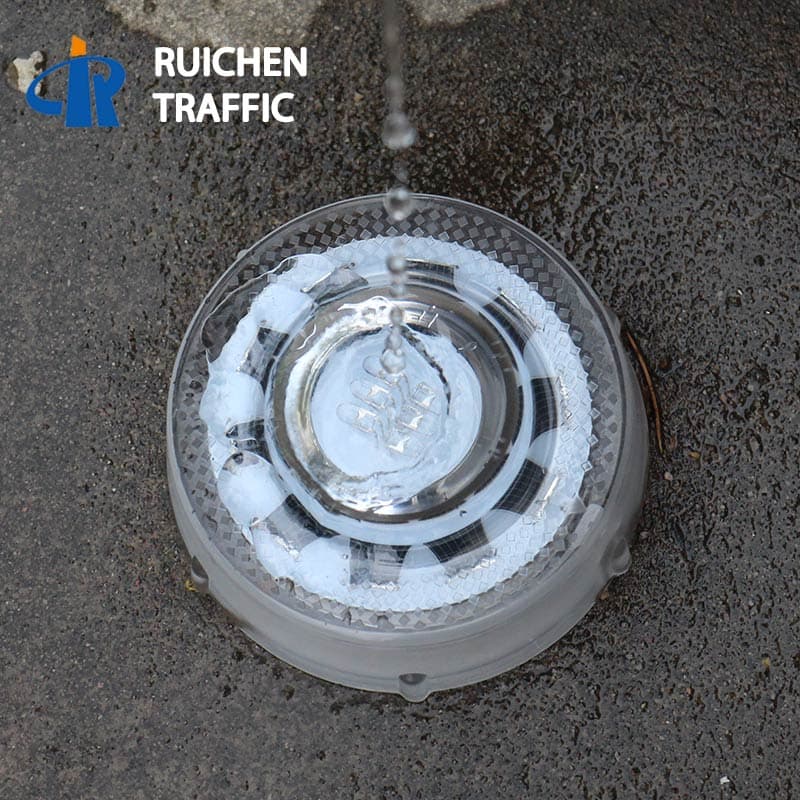

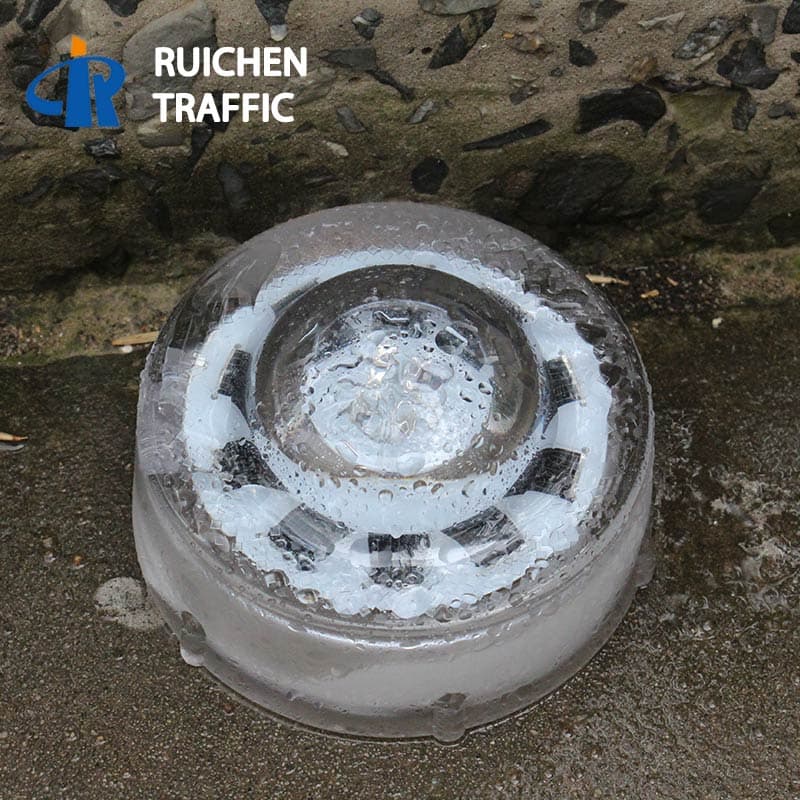

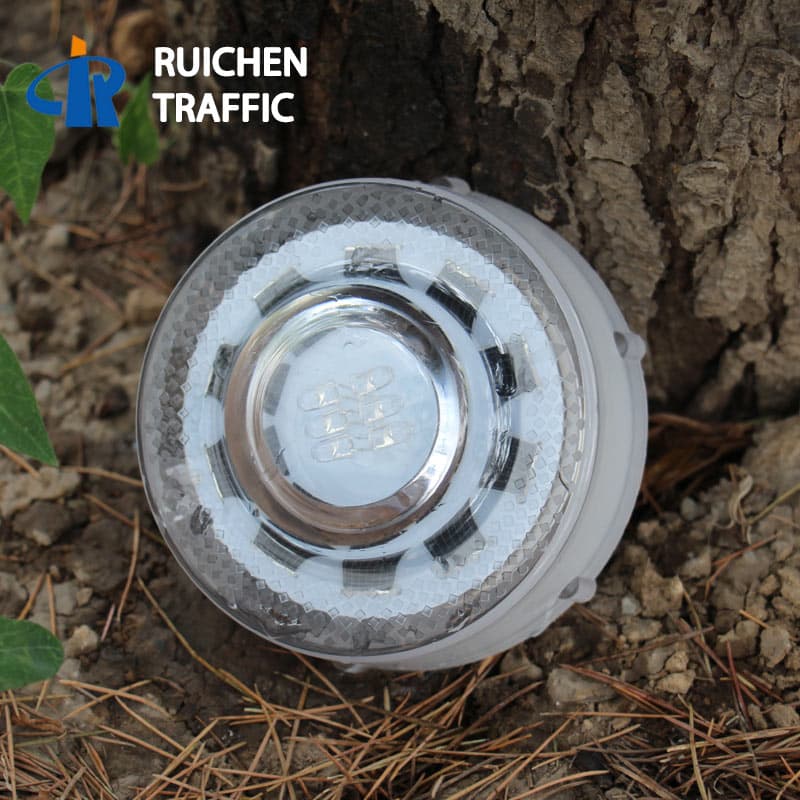

360 Degree Plastic Solar Cat Eyes
360 Degree Plastic Solar Cat Eyes



Application of Aluminum Solar Cat Eyes B2:

♥Schools and hospitals

♥Highways

♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road



Installation Method Of Embedded Solar Cat Eyes:

  • Carefully mark the distance between the placement of Solar Cat Eyes. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill Φ108mm and depth will be 50mm.
  • Remove all debris from the installation hole.
  • Pour epoxy into the holes per the manufacturer’s instruction.
  • Verify that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the plastic Solar Cat Eyes shaft.
  • Set the lighting surface of the Solar Cat Eyes to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar marker shaft.
  • After curing the LED Solar Cat Eyes for 6-8 hours, remove the installation of the isolation facility.
